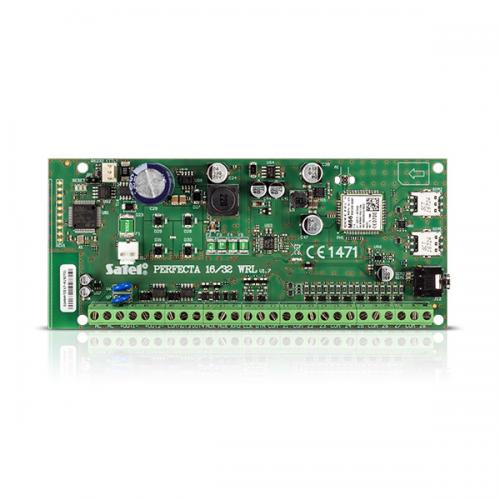

PERFECTA 32 Alarm Control Panel

Features: Voice messages 16 Event log 3584 Partitions 2 Timers 8 Board dimensions 160 x 68 mm Operating temperature range -10… 55 °C Supply voltage (±15%) 18 V AC, 50-60 Hz Standby mode current consumption 150 mA Max. current consumption 180 mA Weight 105 g Maximum humidity 93±3% Current consumption from battery – standby 100 mA Battery failure voltage threshold (±10%) 11 V Battery cut-off voltage (±10%) 10,5 V Environmental class according to EN50130-5 II Maximum current consumption from the battery 160 mA Programmable wired inputs 8 Maximum number of programmable inputs 32 Programmable wired outputs 4 Maximum number of programmable outputs 12 Supplying outputs 2 Communication buses 1 Keypads up to 4 Security grade according to EN 50131 Grade 2 Recommended transformer 40 VA Users 15 Current-carrying capacity of KPD output 500 mA / 12 V DC Output voltage range 10,5 V…14 V DC Battery charging current 500 mA Power supply output voltage 12 V DC ±15% Telephone numbers for notification 8 Power supply output current 2 A Low current programmable outputs rating 25 mA / 12 V DC Current-carrying capacity of programmable high-current outputs 1000 mA / 12 V DC AUX output 500 mA / 12 V DC SKU: PERFECTA 32 Categories: Control Panels, SATEL Security Solutions
