L298N Dual H Bridge DC Stepper Motor Driver Controller Board
Product successfully added to the Quote List
$ 3.33
Please create an account to use this feature.
🔒 Safe & Secure Checkout

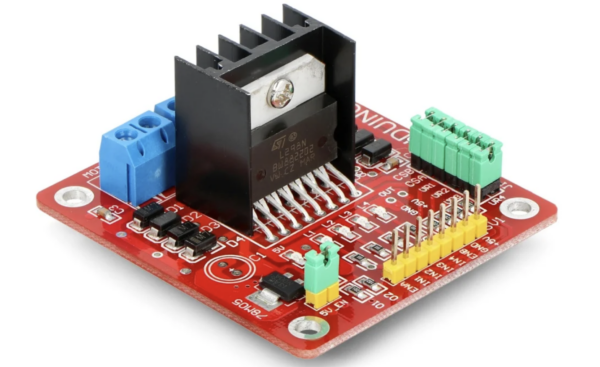

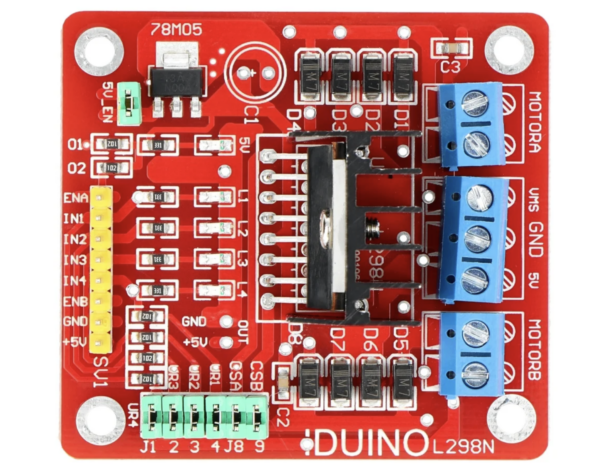

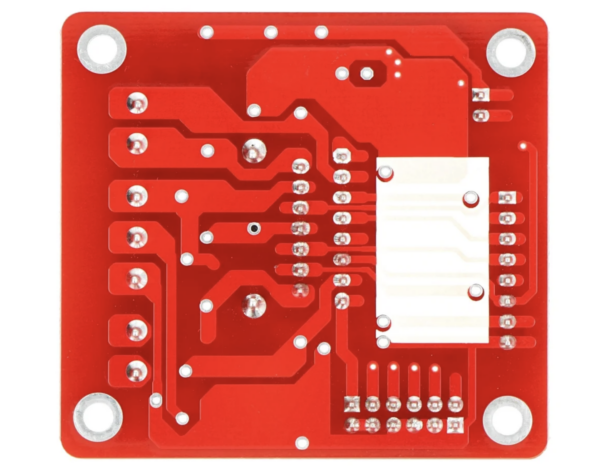

Description Module with popular L298N controller, which allows to control direction and speed of two DC motors. Thanks to ARK screw connectors, power supply and motors themselves can be easily connected by screwing wires with a screwdriver. Control signals are connected to popular goldpin connectors, allowing to connect the circuit to run boards, such as Arduino, using wires. Pinouts PIN DESCRIPTION VMS Supply voltage for motors from 5 V to 46 V. 5V Power supply of the logic part after the stabilizer – active after removing the 5V jumper. GND System ground MOTOR A Motor A channel outputs. MOTOR B Outputs of motor channel B. ENA PWM signal for speed control of motor A. IN1, IN2 Direction control of motor channel A ENB PWM signal for motor speed control B. IN3, IN4 Direction control of channel B L298 CONTROLLER TRUTH TABLE IN1 / IN3 IN2 / IN4 MOTOR OUTPUTS status high status low state The motor turns clockwise at the maximum speed set by pwm (different from 0). state low state state high The motor turns at the maximum speed set via pwm (different from 0) counterclockwise. state low state low state When the high state is given to the PWM input – the motor is braked quickly (fast stop). state high state state high state When the high state is given to the PWM input – fast motor braking (fast stop). state high state high state When the low state is given to the PWM input – free braking (soft stop). Video Video describing the operation of the H-bridge – DC motor driver. Motor driver specification Supply voltage: from 5 V to 46 V Supply voltage of the logic part: 5 V Built-in 5 V voltage regulator for the logic part with the possibility to disconnect it using a jumper Maximum output current: 2 A per channel The module allows control of two DC motors or one stepper motor Motor outputs and power inputs are connected to ARK screw terminals Input pins of the logic part are available on goldpin connectors – 2,54 mm pitch On the board, there are all the necessary passive elements for proper operation of the controller The circuit has a radiator mounted Board dimensions are: 60 x 55 x 30 mm Packing List: 1 x L298N Dual H Bridge DC Stepper Motor Driver Controller Board
